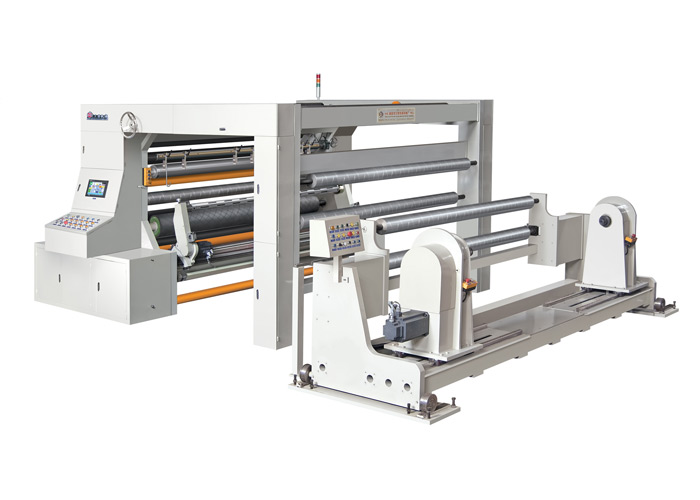

龙门数字控制高速分切机产品
SLW龙门数字控制高速分切机是在吸收欧洲二次分切机型的基础上，为了满足国内原材料加工客户大卷径放卷而设计开发的宽幅二次分切机。该机适用于分切POF、OPP、PET、CPP薄膜、薄纸的加工，它的
分切机主要功能特点:
1、整机由PLC、触摸屏人机界面集中控制(六伺服电机)。
2、放卷机组与分切机组分开，上走料方 式避免污染料膜。
3、液压系统控制实现摆动上卷，并可实现左右放卷臂的横向移动(→→/←←/→←/←→)。
4、3"和6"的无轴胀块式放卷卡头(机械胀轴)。
5、大输出力矩、高精度控制的进口交流伺服驱动控制放卷张力。
6、放卷处设置调偏装置。
7、剃刀悬空分切和刀槽分切两种方式。
8、配可移动式夹边展平器、橡胶弯曲展平辊调节料膜平整度。9、交流伺服驱动的主动牵引辊有效地隔断收、放卷张力之间的相互影响。10、收卷采用四组伺服电机驱动独立工作组收卷。
11、前后各两组成品卷的自动翻卷收卷架，可以将成品卷卸在输送小车上， 以便使成品卷能方便进入下道工序。
12、电器系统采用交流同服驱动技术。
13、作业总长检测，可以设置成品卷收卷长度，达到设定长度时机器自动停机。
This siting machine is mainly to slit such kinds of plastic like POF, OPP,PET, CPP, PE, etc. It is an ideal machine for plastic related supplier.
1. Entire machine is controlled by PLC(6 servo motor), touch screen operation.
2. Unwind and sitting parts are separate, in case of pollute raw material.
3. Hydraulic system can be horizontal movement, as follows: a)(--/----/-)
4. Unwind is shaftless,3 or 6 inch, mechnical shaft.5. Unwind tension is controlled by moment of force, high precision imported servo drive.6. Unwind with offset device.
7. Razor cut, consists of razor and groove shaft.
8. Use spreader roll to spread the film in case of film wrinkles(optional)
9. Drive rolls ,increase the film forwarding capacity and separate the tensioninfluence between unwinding and rewinding station.
10. Rewinds part is consist of 4 independent parts.
11. Two groups of finished product on rewind will be spinning, in order to discharge of material.
12. Electrical system use AC servo drive technology.
13. Meter counting, can preset the length of finished product, auto stoppage.
